Nissan 350Z Adjustable Rear Upper Control Arms

Description

Thanks to the adjustable rear suspension upper control arms designed by CNC71 Motorsport for the Nissan 350Z, it is possible to adjust the rear suspension to best suit the driver’s handling style. This is especially useful when preparing the car for motorsport – drifting as well as time attack. The set of adjustable control arms is also an ideal solution when lowering the car to ensure rear geometry is on point with your expectations.

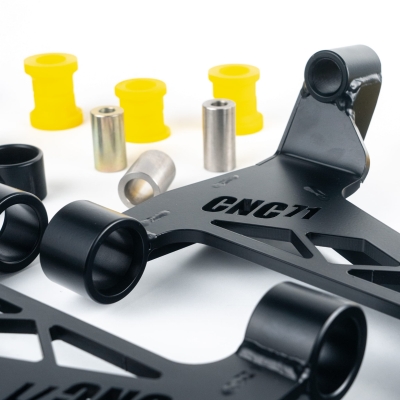

In place of the original rubber bushings, polyurethane bushings with a hardness of 90Sha have been used, adapted for motorsport. The control arm mounting is based on a ball bearing.

Through a range of adjustment in “+” as well as in “-“, the CNC71 Motorsport control arm for the Nissan 350Z allows the vehicle to achieve maximum traction on the drive axle. The total adjustment range is about 30 mm (298 mm – 328 mm) , of which, compared to the original control arm (308 mm), we get the possibility to shorten it by 10 mm or lengthen it by 20 mm.

The upper control arm allows you to change mainly the camber angle. Full adjustability can only be achieved with a full set of rear suspension arms for the Nissan 350Z from CNC71 Motorsport.

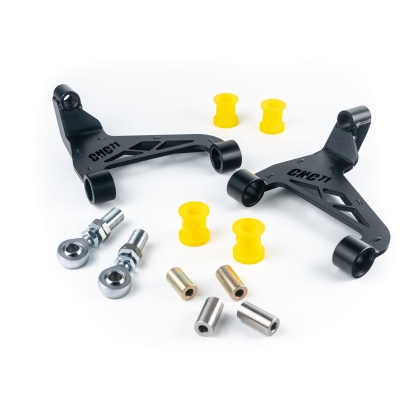

The upper control arm set includes:

• Adjustable rear upper control arm LEFT – 1 piece.
• Adjustable rear upper control arm RIGHT – 1 piece.
• Uniball M18 – 2 pcs.
• Uniball insert set (knuckle attachment)
• Lock nuts for uniball
• Hardware
• Special insert for adjusting the length of the control arm

The control arms were made of steel and TIG-welded, which ensures very high structural strength. Individual components were made on CNC machines, which ensures high quality and repeatability.

The control arms are powder coated in black.

All prices are exclusive of VAT and Shipping this is calculated at the checkout.

** Please Note – We are unable to ship America at the moment due to the shipping costs and the import tariffs that are due at the US customs to release the goods**
